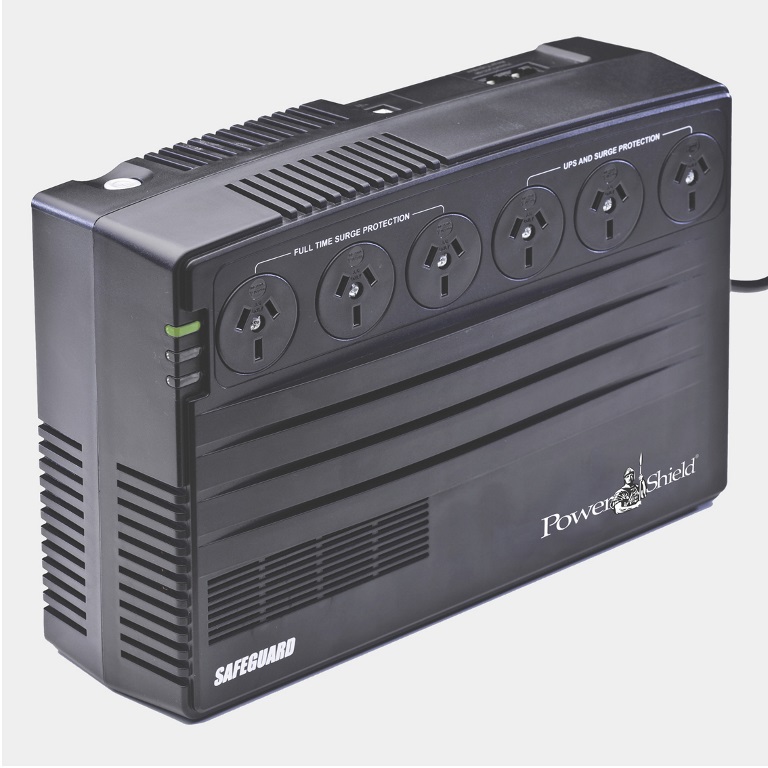

PRODUCT ID: PSG750

Description

Features:
Automatic Voltage Regulation (Buck and Boost)
Light-weight compact and elegantly designed
Intelligent microprocessor control
Monitoring and shutdown software included
Fax/modem/LAN surge suppression port
Overload protection and alarm
Output short circuit protection
Start on battery function (cold start)
USB communication
Easy user replacable battery
Australian/New Zealand approved sockets
Wall mountable
Fast charging - 90[[][%]] in 4 hours

Specifications:
Model: PSG750
Topology: Line interactive
Input:
Voltage: 240Vac
Voltage range: 177Vac to 290Vac
Frequency: 50Hz
Output:
Nominal voltage: 240Vac
Voltage regulation: +/-10[[][%]]
Battery transfer time: 6 msec ( typical )
VA/Wattage 750VA / 450W
Battery:
Type: Sealed lead acid maintenance free battery
Capacity: 12V/9Ah
Full load backup time: 2.5 min
Data protection: Tel/modem/Lan, RJ45 connector
Software:
PowerShield NetGuard software
Sports Windows, Linux, Unix and Mac Operating systems
Interface: USB interface
Audible noise: <40dBA
Operational environment Temperature: 0-40C, Humidity 0-90[[][%]] Non condensing
Physical:
Dimension (DxWxH): 199x292x91mm
Weight: 7kg

Last updated: Friday, 17 April 2026

Warranty

This product is sourced in Australia and carries a full Australian Manufacturers Warranty
